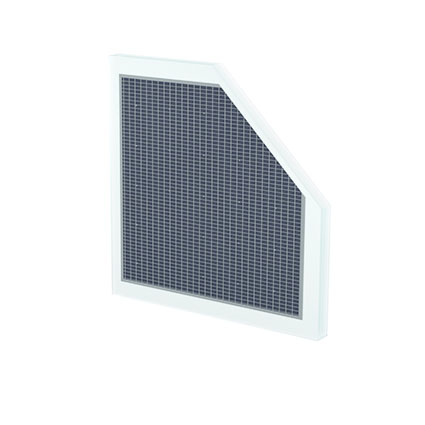

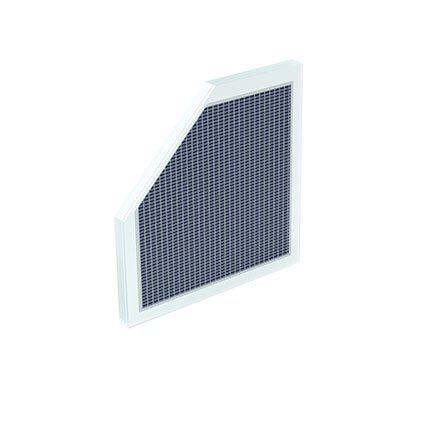

Vacuum insulated glass PV panel

未标题-1.jpg 未标题-2.jpg

I、Name

Photovoltaic vacuum insulated glass

II、Product description

PV vacuum insulated glass is a combination of a solar PV module and vacuum insulated glass. While retaining the advantages of PV modules in terms of power generation capacity, power conversion efficiency, uniform color, and elegant appearance, it improves the thermal insulation performance of photovoltaic systems. By introducing PV technology into the vacuum insulated glass, the photovoltaic vacuum insulated glass achieves in one step transparency, soundproofing, thermal insulation, and solar radiation reduction in addition to generating electricity. It has great potential for possible applications in photovoltaic power stations, photovoltaic curtain walls, and agricultural greenhouses.

III、Performance parameters

The product performance parameters vary depending on its specific configurations, as shown in the following table:


Photovoltaic vacuum insulated glass

Thermal transmittance U

(W/m2·k)

Light transmittance

(%)

Rated Power
(W)

Open-circuit voltage
(V)

Short-circuit current
(A)

Operating voltage
(V)

Operating current
(A)

         5T+0.3V+5TL+P(Solar panel)+5T

0.45

40

48

116

0.59

87

0.55

5T+0.3V+5TL+P(solar panel)+5T

0.45

10

72

116

0.88

87

0.82


Test Conditions:STC 100W/㎡,AM1.5,25℃
